What Does Tile Coverage Mean for Homeowners and Installers
TL;DR:
- Tile coverage measures the percentage of a tile’s back surface in solid mortar contact, with 80% required for interior ceramic and porcelain in dry areas, and 95% for natural stone and wet applications. Proper technique, substrate flatness, and inspection are essential, as voids can cause cracks, delamination, and water damage over time. Regular field checks and sample removals ensure compliance with standards and longevity of the installation.
Tile coverage is the percentage of a tile’s back surface that makes direct, solid contact with the mortar beneath it. Under ANSI A108.5, the minimum accepted thresholds are:
- 80% contact for ceramic and porcelain in interior dry areas
- 95% contact for exterior installations, wet areas (showers, pools), and all natural stone without exception
The TCNA Handbook echoes these same thresholds. For marble, travertine, and limestone, the 95% rule applies whether the tile goes in a dry hallway or a steam shower. Surfacesgalore, a direct importer of premium natural stone based in Anaheim, California, builds every installation recommendation around these standards because the consequences of falling short show up fast, especially in stone.
Table of Contents
- What tile coverage actually measures, and the rules behind it
- Why insufficient coverage causes real damage
- How to achieve the required coverage in the field
- How to inspect and verify coverage on-site
- Estimating how much thinset you need
- What to do when coverage falls short
- Surfacesgalore’s professional checklist for natural stone installations
- Key Takeaways
- Why coverage is the one thing most homeowners never think to check
- Premium natural stone, shipped nationwide
- Useful sources
- FAQ
What tile coverage actually measures, and the rules behind it
Coverage is not the same as back-buttering, and it is not the same as mortar transfer. These three terms get used interchangeably, but they describe different things.
Contact area is the actual percentage of the tile’s back that bonds to the substrate after full embedment. Transfer is what you see when you lift a freshly set tile: the mortar print left on the tile back. Back-buttering is a technique, not a measurement. You can back-butter a tile and still end up with 60% contact if the technique or substrate is wrong.
“Tile industry standards require minimum mortar coverage of 80% in dry areas and 95% in wet (showers) or exterior areas. Natural stone tile installations require 95% coverage in all applications.” — Ceramic Tile Education Foundation (CTEF)
ANSI A108.5 also sets void rules that most homeowners never hear about: no voids exceeding 2 square inches, and no voids within 2 inches of any tile corner in stone installations. The minimum mortar thickness after embedding is 3/32 inch (roughly 2 mm). The NTCA and CTEF both publish guidance on how to verify these numbers in the field, and the TCNA Handbook is the go-to reference for specifying them in a contract.
Why insufficient coverage causes real damage
Tile that looks perfectly flat can be sitting on a patchwork of voids. That gap between appearance and reality is where most failures start.
- Cracking in natural stone: Marble, travertine, and limestone are brittle. An unsupported edge or corner concentrates foot traffic load on a tiny contact point, and the stone cracks. The 95% requirement for natural stone exists precisely because stone cannot flex the way ceramic can.
- Hollow-sounding tiles: Tap a tile with a coin or knuckle and a dull thud tells you there is air underneath. It is not just annoying; it signals a structural void.
- Persistent dark grout joints: In showers, uncollapsed mortar channels act as reservoirs. Water collects in those voids and slowly leaches back through grout joints, keeping them perpetually darker than the rest.
- Delamination: Tiles with poor coverage eventually debond, especially in freeze-thaw climates or high-traffic areas.
- Moisture intrusion: Voids near corners or edges in wet areas create pathways for water to reach the substrate, leading to mold, rot, and costly structural repairs.
The long-term cost of a callback, tile replacement, and water damage repair almost always exceeds the cost of doing it right the first time.

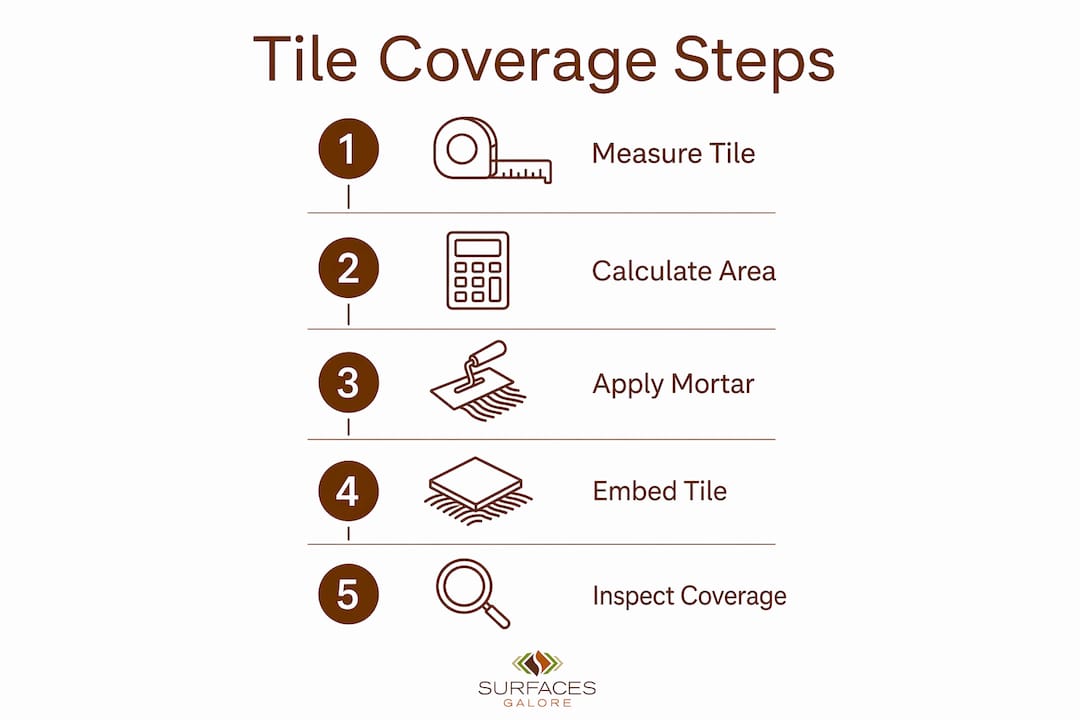

How to achieve the required coverage in the field
Getting to 80% or 95% is a technique problem, not just a material problem. Here is the sequence that works.
Step-by-step installation workflow
- Prep the substrate. Flatness matters more than most installers admit. ANSI tolerances call for no more than 1/8 inch variation over 10 feet for tiles up to 15 inches, and 1/16 inch over 24 inches for larger formats. Prime porous substrates per the mortar manufacturer’s instructions.
- Key in the mortar. Use the flat side of the trowel to force mortar into the substrate. This step is not optional; it improves bond and reduces air pockets.
- Comb in straight, parallel lines. Comb short-side to short-side for rectangular tiles. Parallel combing gives air the shortest path to the nearest grout joint.
- Set the tile perpendicular to the ridges. Push the tile back and forth across the ridges, not along them. This collapses the ridges into the valleys and forces air out.
- Beat in each tile. Use a rubber mallet or beating block. Listen for air escaping at the grout joint. Feeling mortar squeeze slightly at the edges is a good sign.
- Lift and inspect periodically. Pull a tile every few placements to check the transfer print on the back.
Trowel notch selection guide
| Tile size | Suggested notch type | Notes |
|---|---|---|
| Up to 8" x 8" | 3/16" V-notch or 1/4" x 1/4" square | Light coverage; fine for small ceramic |
| 8" x 8" to 12" x 12" | 1/4" x 3/8" square or U-notch | Better ridge collapse than 1/4" x 1/4" |
| 12" x 12" | 1/4" x 1/2" or 3/8" x 3/8" square | Back-buttering often needed for stone |
| Large format | 1/2" x 1/2" square or deeper U/zipper notch | Move tile at least notch-width in each direction |
A note on the 1/2" x 1/2" square-notch: It became the default for large-format work, but NTCA testing shows it often fails to collapse ridges fully unless the installer moves the tile far enough perpendicular to the ridges. Deeper, narrower notches (U-notch or zipper) can be easier to collapse on some formats.
Pro Tip: When you push a tile into the mortar and move it perpendicular to the ridges, listen carefully. You can actually hear the air being forced out through the grout joint. No sound means the ridges are not collapsing. Stop, lift the tile, and reassess your notch or technique before continuing.
Avoid these mistakes:
- Swirl or figure-8 troweling traps air and almost guarantees low contact
- Spot-bonding (dollops of mortar at corners and center) is never acceptable under ANSI standards
- Skipping back-buttering on natural stone with a textured or lugged back
How to inspect and verify coverage on-site
Verification is not optional on a stone project. Here is how to do it without guessing.
Before you start setting:
- Check substrate flatness with a 10-foot straightedge
- Run a small mock-up area with your chosen trowel and technique, then lift a tile to see the transfer print
During installation:
- Lift at least one tile every 15–20 square feet to inspect the mortar print on the back.
- Per ANSI guidance, remove at least three representative tiles or assemblies during the job to verify contact area.
- Measure the mortar-covered area versus the total tile back. For a 12" x 12" tile, 95% coverage means at least 136.8 square inches of the 144-square-inch back must show mortar contact.
- Document your findings: note trowel size, mortar brand, substrate condition, and coverage percentage observed.
Red flags to watch for:
- Hollow sound when tapping a set tile
- Grout joints that stay darker than neighbors in a shower
- Visible voids at tile edges before grouting
- Tiles that shift or rock slightly when pressed
If you are hiring a contractor, ask to be present for at least one sample removal. A qualified installer will not hesitate.
Estimating how much thinset you need
Manufacturer bag-coverage numbers are starting points, not guarantees. Substrate flatness, tile back profile, and trowel notch all change how far a bag actually goes.
| Trowel notch | Approx. coverage per 50 lb bag |
|---|---|
| 1/4" x 1/4" square | 40 sq ft |
| 1/4" x 3/8" square | 30 sq ft |
| 3/8" x 3/8" square | 25 sq ft |
| 1/2" x 1/2" square | 15 sq ft |
Worked example: A 60-square-foot bathroom floor using a 3/8" x 3/8" notch. At roughly 30 sq ft per bag, you need about 2 bags. Add a 10–15% waste margin for back-buttering, cuts, and substrate irregularities, and you are ordering 3 bags to be safe.
Always test your trowel on a small section first and lift a tile to confirm coverage before committing to the full floor. For guidance on ordering the right quantity of tile and materials, Surfacesgalore has a practical resource that walks through overage calculations.
What to do when coverage falls short
Small voids or edge gaps (caught during installation)
- Remove the tile immediately while the mortar is still workable.
- Scrape the substrate and tile back clean.
- Re-key the substrate, re-comb with a fresh layer, and back-butter the tile back.
- Re-set and verify by lifting again before moving on.
Widespread voiding discovered after grouting
This is a full re-set situation. Spot-patching a tile here and there while leaving widespread voids in place does not fix the structural problem, especially in wet areas or under natural stone.
- Remove all affected tiles carefully to avoid damaging adjacent ones.
- Grind or scrape the substrate back to a clean, flat surface.
- Re-install following the full sequence above.
When to call a professional:
- Any wet-area failure involving natural stone
- Voids near corners or edges on marble or travertine
- More than a few tiles showing hollow sound across a large area
- Any situation where you are unsure whether the substrate is sound
When interviewing a pro, ask whether they follow ANSI A108.5 compliance, whether they plan to do sample removals during the job, and how they handle back-buttering for stone. An installer who cannot answer those questions clearly is a risk. For on-site safety during tile removal and re-setting work, reviewing construction site hazard categories is a sensible step before starting any significant rework.
Surfacesgalore’s professional checklist for natural stone installations
Use this checklist to brief your contractor or verify work on marble, travertine, and limestone projects.
- Material inspection: Confirm tiles are free of cracks or chips before installation begins
- Substrate flatness: Verify no more than 1/8" variation over 10 feet; use a straightedge before any mortar goes down
- Trowel notch test: Require a mock-up with the planned trowel; lift a tile to confirm 95% contact before full installation starts
- Back-buttering plan: For all natural stone, back-buttering is standard, not optional
- Sampling schedule: Request at least three tile removals during the job, documented with photos
- Mortar selection: Use a polymer-modified thinset rated for natural stone; check the manufacturer’s recommendation for marble and travertine specifically, as some mortars can stain light stone
- Documentation: Ask for a written record of trowel size, mortar product, and coverage results observed during sample lifts
Pro Tip: For travertine tiling projects, the filled-hole surface means the tile back can be uneven. Always back-butter travertine and use a white or gray polymer-modified mortar to avoid color bleed through the stone.
Key Takeaways
Proper tile coverage, defined by ANSI A108.5, requires 80% mortar contact for interior dry ceramic and porcelain, and 95% for all natural stone, wet areas, and exteriors, with no voids exceeding 2 square inches.
| Point | Details |
|---|---|
| Coverage definition | Percentage of tile back in solid mortar contact after full embedment. |
| 80% vs. 95% rule | 80% applies to interior dry ceramic/porcelain; 95% applies to all natural stone, wet areas, and exteriors. |
| Void limits | No voids over 2 sq in; no voids within 2 in of any corner on stone installations. |
| Verify with sample lifts | Remove at least three tiles during installation to confirm contact area meets ANSI thresholds. |
| Surfacesgalore stone guidance | Surfacesgalore recommends 95% coverage and back-buttering for all marble, travertine, and limestone installations. |
Why coverage is the one thing most homeowners never think to check
Most people focus on the tile they can see. The grout color, the layout pattern, the finish. Coverage lives entirely underneath, invisible until something goes wrong.
Here is what I think gets missed most often: installers who have been in the trade for years sometimes rely on feel and habit rather than verification. They know their trowel, they know their motion, and they assume the coverage is there. But substrate conditions change job to job. A slightly out-of-flat floor, a tile with a deeper lug pattern on the back, a mortar mixed a little stiffer than usual. Any one of those variables can drop coverage below the threshold without the installer noticing.
The three questions every homeowner should ask a contractor before work starts:
- What trowel notch are you planning to use, and will you run a mock-up and lift a tile to confirm coverage before you start the full floor?
- How many tiles will you remove during the job to verify contact area, and will you document it?
- For natural stone specifically, what is your back-buttering approach, and which mortar are you using?
A contractor who answers all three confidently, with specifics, is worth hiring. One who says “don’t worry, I’ve been doing this for 20 years” without addressing the actual questions is telling you something important.

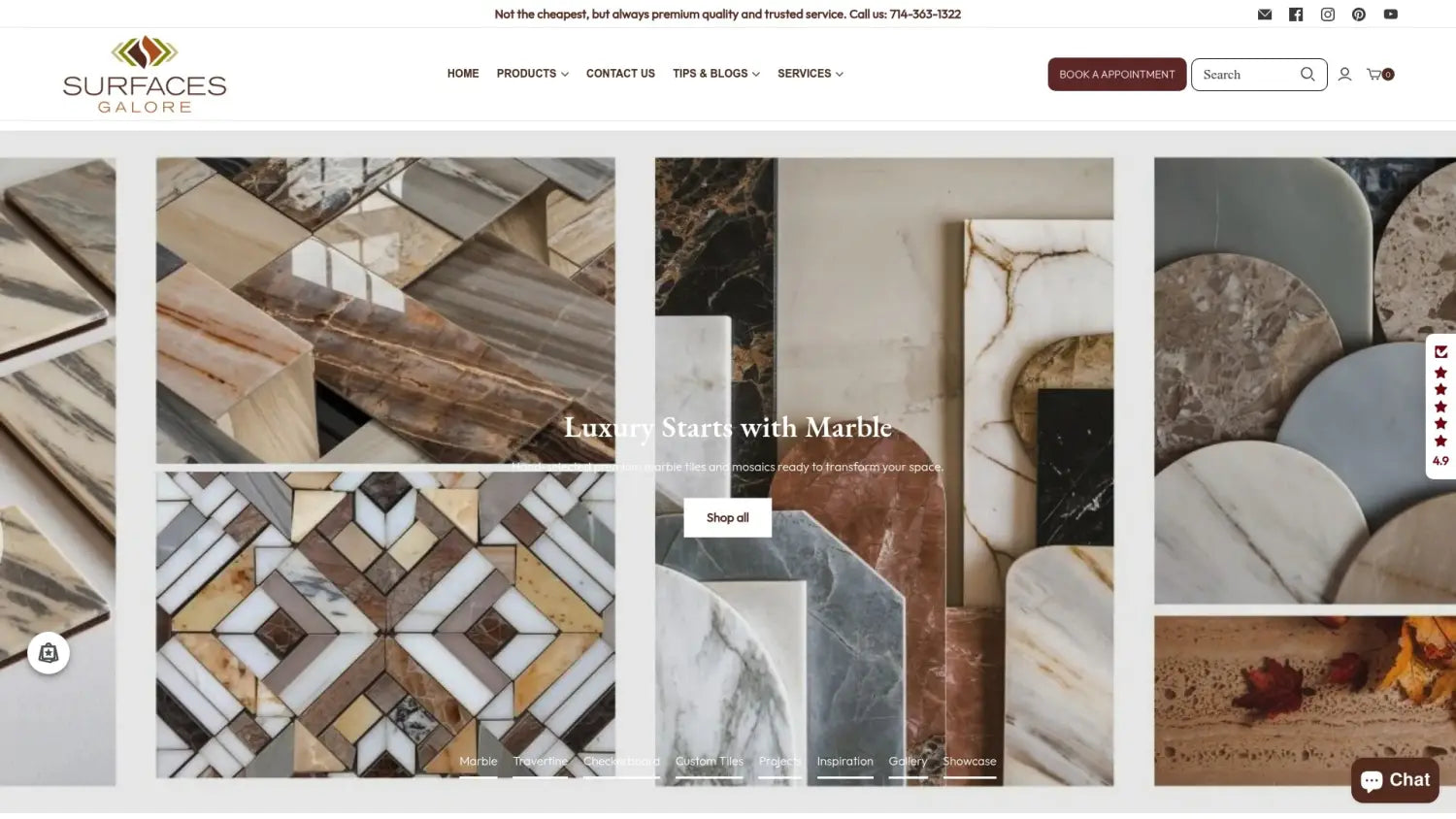

Premium natural stone, shipped nationwide
Surfacesgalore imports marble, limestone, and travertine directly, which means you get authentic stone at prices that do not include a middleman’s markup. Every collection ships nationwide from Anaheim, California, to homeowners, designers, and contractors who want material that holds up as well as it looks.
Whether you are planning a marble bathroom floor that needs 95% coverage to stay crack-free, a travertine entryway, or a limestone feature wall, Surfacesgalore carries the stone and the installation knowledge to back it up. Browse the natural stone tile collections or get in touch to request installation guidance specific to your project. The right stone, properly installed, lasts decades.
Useful sources
The standards and resources below are the primary references for tile coverage requirements in the United States. Consult them when writing contract language or specifying work.
- ANSI A108.5 — the governing standard for mortar coverage percentages, void limits, and minimum mortar thickness
- TCNA Handbook — the Tile Council of North America’s installation method reference, used by architects and specifiers
- NTCA Trowel & Error video — practical demonstration of parallel combing and perpendicular embedment technique
- CTEF blog on mortar coverage — guidance on sample removal and inspection frequency
- Surfacesgalore installation resources — project-specific guidance for marble, travertine, and limestone wet-area installations
“The only way to know you have achieved the required coverage is to periodically lift an installed tile and inspect the mortar transfer on the back. Assuming you have coverage without checking is how failures happen.” — Ceramic Tile Education Foundation (CTEF)
Always request that your installer document sample removals in writing and include ANSI A108.5 compliance as a specification in your contract.
FAQ
What is tile coverage, and what percentage is required?
Tile coverage is the percentage of a tile’s back surface in direct contact with mortar. ANSI A108.5 requires 80% for interior dry ceramic and porcelain, and 95% for natural stone, wet areas, and exterior installations.
How much does a 50 lb bag of thinset cover?
Coverage varies by trowel notch and substrate conditions. Coverage varies by trowel notch and substrate conditions. For a 1/4" x 1/4" square notch, a 50 lb bag covers approximately 40 sq ft; for 1/4" x 3/8" square, about 30 sq ft; for 3/8" x 3/8" square, about 25 sq ft; and for 1/2" x 1/2" square, about 15 sq ft. Always test your actual site conditions before relying on bag estimates.
How do you calculate tile coverage for a specific tile size?
Multiply the tile’s total back area by the required coverage percentage. A 12" x 12" tile has 144 square inches of back surface; for 95% coverage, at least 136.8 square inches should show solid mortar contact.
How many square feet does a 24" x 24" tile cover?
A single 24" x 24" tile covers 4 square feet. For coverage calculation purposes, ANSI A108.5 requires 95% coverage for natural stone or for wet/exterior areas, meaning at least 3.8 square feet must show solid mortar contact.
How do you verify coverage without a lab?
Lift a freshly set tile and inspect the mortar print on the back. Per ANSI guidance, remove at least three representative tiles during installation and measure the mortar-covered area against the total tile back surface.
